Study Normal Human Walking Behavior

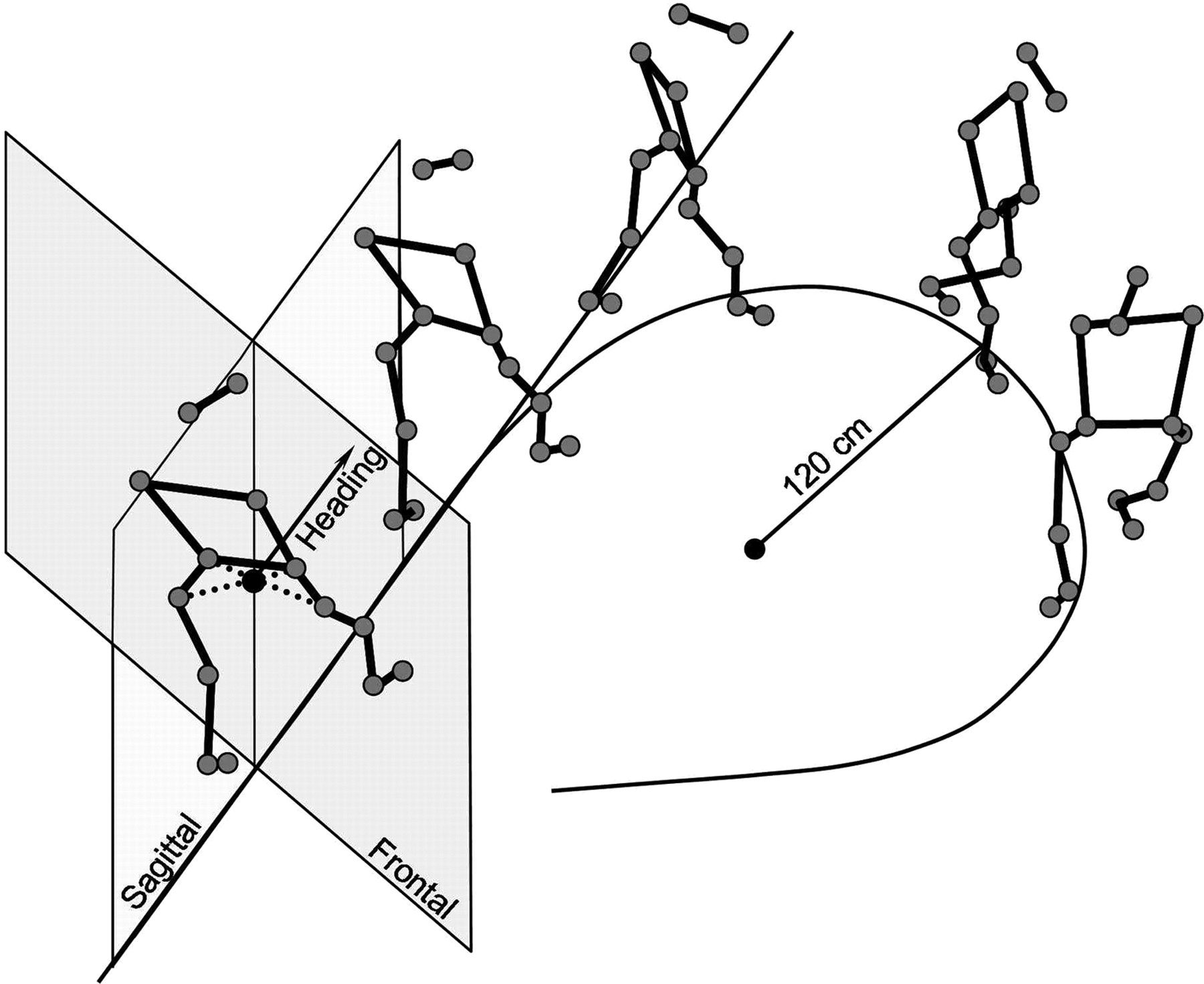

FIG . 1.  Stick diagram shows typical body movements during curved walking. Point at the intersection of the dotted lines joining the hip and greater trochanter of left and right body sides in the  first stick  on the  left  is the  body midpoint . Vector represented at the level of the body midpoint indicates the instantaneous heading. Sagittal plane: vertical plane passing through the heading vector; the plane follows the vector's orientation during walking. Frontal plane: vertical plane perpendicular to the sagittal plane.

FIG. 1.

Stick diagram shows typical body movements during curved walking. Point at the intersection of the dotted lines joining the hip and greater trochanter of left and right body sides in the first stick on the left is the body midpoint. Vector represented at the level of the body midpoint indicates the instantaneous heading. Sagittal plane: vertical plane passing through the heading vector; the plane follows the vector's orientation during walking. Frontal plane: vertical plane perpendicular to the sagittal plane.

Grégoire Courtine and Marco Schieppati tested the hypothesis that common principles govern the production of the locomotor patterns for both straight-ahead and curved walking. Whole body movement recordings showed that continuous curved walking implies substantial, limb-specific changes in numerous gait descriptors. Principal component analysis (PCA) was used to uncover the spatiotemporal structure of coordination among lower limb segments. PCA revealed that the same kinematic law accounted for the coordination among lower limb segments during both straight-ahead and curved walking, in both the frontal and sagittal planes: turn-related changes in the complex behavior of the inner and outer limbs were captured in limb-specific adaptive tuning of coordination patterns. PCA was also performed on a data set including all elevation angles of limb segments and trunk, thus encompassing 13 degrees of freedom. The results showed that both straight-ahead and curved walking were low dimensional, given that 3 principal components accounted for more than 90% of data variance. Furthermore, the time course of the principal components was unchanged by curved walking, thereby indicating invariant coordination patterns among all body segments during straight-ahead and curved walking. Nevertheless, limb- and turn-dependent tuning of the coordination patterns encoded the adaptations of the limb kinematics to the actual direction of the walking body. Absence of vision had no significant effect on the intersegmental coordination during either straight-ahead or curved walking. Our findings indicate that kinematic laws, probably emerging from the interaction of spinal neural networks and mechanical oscillators, subserve the production of both straight-ahead and curved walking. During locomotion, the descending command tunes basic spinal networks so as to produce the changes in amplitude and phase relationships of the spinal output, sufficient to achieve the body turn.

Journal of Neurophysiology Published 1 April 2004 Vol. 91 no. 4, 1524-1535 DOI: 10.1152/jn.00817.2003
